Steel grade for fasteners applications

They are steels used for cold and hot deformation to produce screws, bolts, nuts or parts intended for subsequent mechanical machining.
The strict control of the manufacturing process allows us to obtain products that are free of non-metallic inclusions, whereas the controlled rolling guarantees a product with contained decarburisation and no surface defects.
The slow final cooling of the wire guarantees a product that perfectly fulfils the strict specifications of cold deformation. The key manufacturers of nuts and bolts in Europe and abroad appreciate the quality of ORI Martin special steels, and particularly acknowledge the excellent ductility and hardenability.

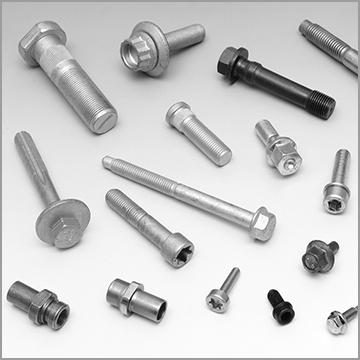

Fasteners

Steel grade

Steel grade Corresponding standard Average chemical composition
Werkstoff ORI Martin C Mn Si Cr Ni Mo B ppm V
C C4C 1.0303 SC08X1 0,04 0,30 0,03 - - - - -
C8C 1.0213 SC08X5 0,08 0,30 0,03 - - - - -
C10C 1.0214 SC10X1 0,10 0,40 0,05 - - - - -
C15C 1.0234 SC15S5 0,15 0,50 0,10 - - - - -
C20C 1.0411 SC20S2 0,20 0,60 0,10 - - - - -
B 15B2 1.5501 S15B11 0,13 0,55 - - - - 30 -
17B2 1.5502 S18B12 0,17 0,70 - - - - 20 -
23B2 1.5508 S21B11 0,21 0,80 - 0,15 - - 20 -
28B2 1.5510 S25B12 0,27 0,80 - 0,25 - - 20 -
33B2 1.5514 S34B11 0,32 0,80 - 0,15 - - 20 -
35B2 1.5511 S35B11 0,37 0,75 - - - - 30 -
45B2 1.5513 S45B11 0,45 0,75 - 0.15 - - 30 -
Mn B 23MnB4 1.5535 S21B13 0,22 0,95 - 0,30 - - 20 -
30MnB4 1.5526 S30B11 0,30 0,80 - 0,15 - - 20 -
36MnB4 1.5537 S35B16 0,35 0,90 - 0,15 - - 20 -
Mo B 30MoB1 1.5408 S30B15 0,30 0,90 - 0,20 - 0,10 20 -
Cr Ni Mo 39NiCrMo3 1.6510 S38H41 0,38 0,70 - 0,80 0,80 0,20 - -
34NiCrMo6 1.6582 S34H61 0,34 0,70 - 1,50 1,50 0,20 - -
Cr B 25CrB3 S25BC1 0,25 0,65 - 0,70 - - 40 -
32CrB4 1.7076 S30BC 0,32 0,80 - 1,10 - - 20 -
36CrB4 1.7077 S36BC 0,36 0,80 - 1,10 - - 20 -
Cr 34Cr4 1.7033 S34C41 0,34 0,70 - 1,00 - - - -
37Cr4 1.7034 S37C44 0,37 0,70 - 1,00 - - - -
41Cr4 1.7035 S41C4 0,41 0,70 - 1,00 - - - -
Mn Cr B 27MnCrB5-2 1.7182 S27B51 0,27 1,25 - 0,45 - - 20 -
33MnCrB5-2 1.7185 S31B51 0,33 1,35 - 0,45 - - 20 -
Cr Mo 34CrMo4 1.7220 S34L41 0,34 0,70 - 1,00 - 0,20 - -
42CrMo4 1.7225 S42L41 0,42 0,70 - 1,00 - 0,20 - -
Cr Mo B 31CrMoB2-1 1.7272 S30B18 0,30 1,00 - 0,50 - 0,12 20 -
32CrMoB4 S32BL1 0,32 0,80 - 1,00 - 0,12 20 -
Cr Mo V 21CrMoV5-7 1.7709 S21K51 0,21 0,60 - 1,35 - 0,68 - 0,28
40CrMoV4-6 1.7711 B40K41 0,40 0,60 - 1,00 - 0,60 - 0,30
Download

Products



ORI Martin S.p.A.

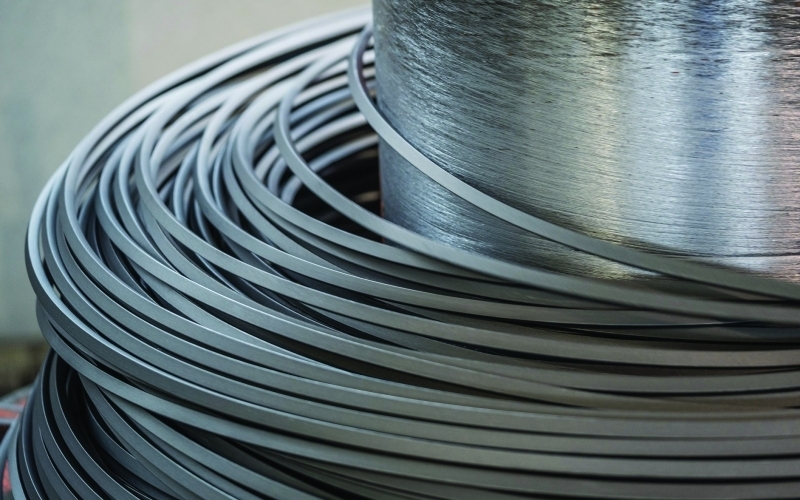

Wire rod

Rolling takes place at a controlled temperature using the very latest technology. This allows a smaller grain size to be obtained together with a more fine and even structure. Optimal characteristics for subsequent use in drawing and cold moulding in addition to a higher degree of globularisation after the annealing process.

Hot rolled bars

Production takes place in a rolling mill at a controlled temperature using the very latest technology which guarantees a fine grain and homogeneous structure; the calibrator finishing block allows bars with restricted dimensional tolerances.

Continuous casting billets

ORI Martin spa sells continuous casting steel billets to rolling mills and hot forgers. The refining process with the degassing station and the casting through submerged nozzles guarantee the supply of billets of high-quality engineering steel.
